Hilbe bei Plot mit doppelter x-Achse benötigt



Patrick1990
Forum-Fortgeschrittener

Forum-Fortgeschrittener


Beiträge: 51
Anmeldedatum: 25.02.13
Wohnort: Thüringen
Version: 2015b
     Beitrag Verfasst am: 28.12.2017, 12:01     Titel: Hilbe bei Plot mit doppelter x-Achse benötigt
  Antworten mit Zitat
Hallo liebes Forum,

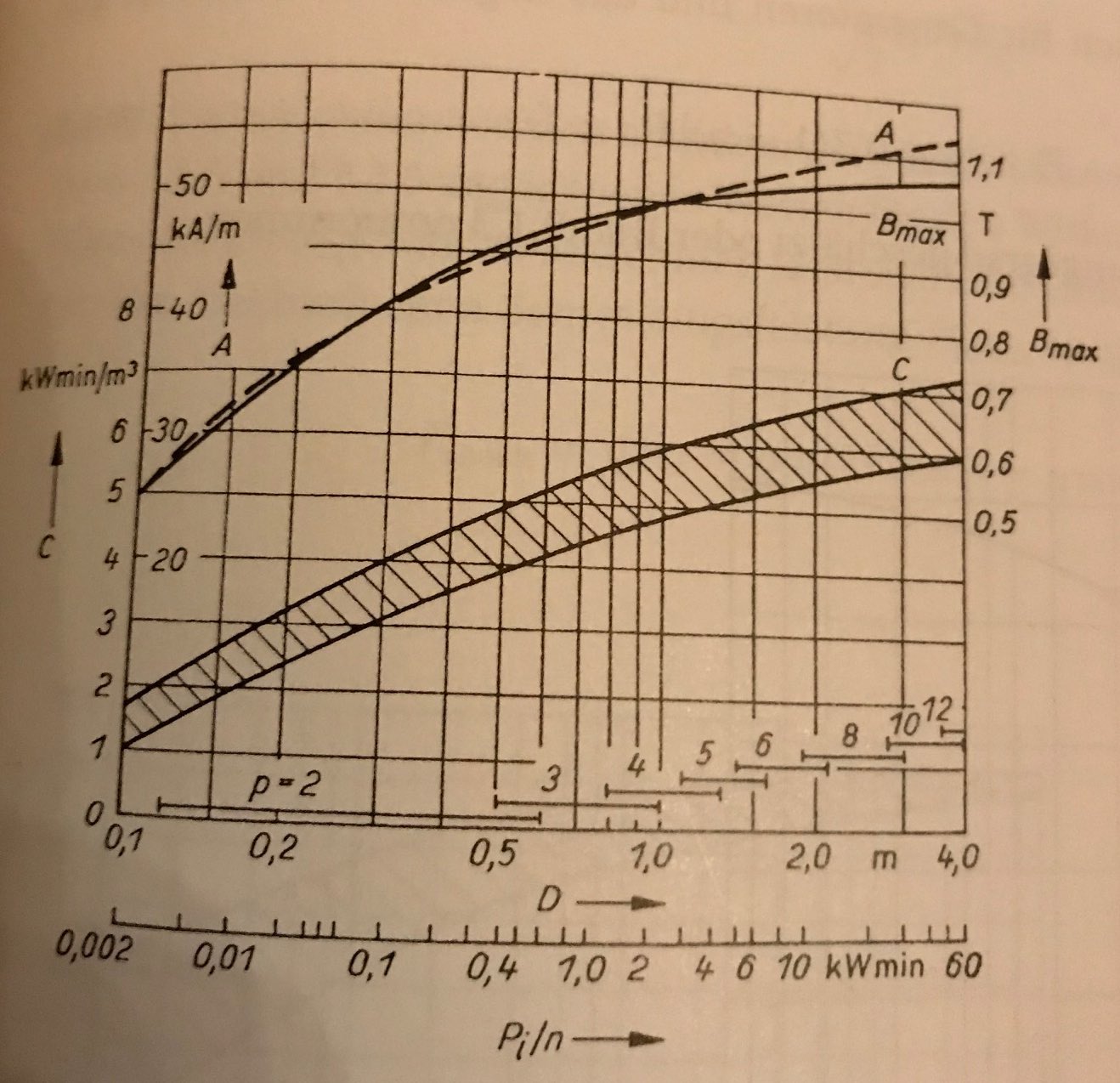

ich würde gern ein Diagramm (siehe Anhang) nachbilden.

Bisher bin ich an diesem Punkt angekommen:

Code:
clear all;
close all;

data_below = [
[0.1, 1];
[0.2, 2.4];
[0.3, 3.05];
[0.4, 3.5];
[0.5, 3.9];
[1.0, 4.8];
[2.0, 5.4];
[4.0, 6.0]
];

data_above = [
[0.1, 1.8];
[0.2, 3.2];
[0.3, 4.0];
[0.4, 4.5];
[0.5, 4.95];
[1.0, 5.95];
[2.0, 6.7];
[4.0, 7.2]
];

xx = 0.1:.005:4;
yy_below = spline(data_below(:,1),data_below(:,2),xx);
yy_above = spline(data_above(:,1),data_above(:,2),xx);

y1 = interp1(data_below(:,1),data_below(:,2),xx,'pchip');
y2 = interp1(data_above(:,1),data_above(:,2),xx,'pchip');


hAX=axes('xlim', [0.1 4], 'ylim', [0 8], 'XScale', 'log', 'XTick', [0.1 0.15 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.5 2.0 3.0 4.0], 'XTickLabel', {'0.1', '', '0.2', '', '', '0.5', '', '', '', '', '1.0', '', '2.0', '', '4.0'});                 % first axes, save handle
pos = get(hAX,'position');   % get the position vector
pos1=pos(2);              % save the original bottom position
pos(2)=pos(2)+pos1; pos(4)=pos(4)-pos1;  % raise bottom/reduce height->same overall upper position
set(hAX,'position',pos)   % and resize first axes
pos(2)=pos1; pos(4)=0.01; % reset bottom to original and small height
hAX(2)=axes('position',pos,'color','none','xlim', [0.002 60],'XScale', 'log', 'XTick', [0.002 0.005 0.01 0.1 0.4 1.0 2 4 6 10 20 30 40 50 60], 'XTickLabel', {'0.002', '', '0.01', '0.1', '0.4', '1.0', '2', '4', '6', '10', '20', '', '40', '', '60'});  % and create the second
ylabel(hAX(1),'Axes 1')
xlabel(hAX(1),'Axes 1')
xlabel(hAX(2),'Axes 2')
set(hAX(2),'xcolor','r','ycolor','r')

fill([xx;xx],[y1;y2], 'red','Parent',hAX(1)); % ylim nun nicht mehr zwischen 0 und 8

line(data_below(:,1), data_below(:,2), 'Parent',hAX(1), 'marker', 'x')
line(data_above(:,1), data_above(:,2), 'Parent',hAX(1), 'marker', 'x')

line(xx, y1,'Parent',hAX(1), 'color', 'red')
line(xx, y2,'Parent',hAX(1), 'color', 'red')




Wenn ich den ill-Befehl auskommentiere, ist die y-Achse wieder auf den Bereich zwischen 0 und 8 begrenzt. Ansonsten verstellt sich der Bereich von 1 auf 8. Woran liegt das?

Weiterhin fehlt das Grid und ich würde (wenn möglich gern auch noch die anderen Kurven mit deren Achsen und Achsenbeschriftungen einfügen).

Könnt ihr mir helfen?

 Beschreibung:

Download
 Dateiname:  Diagramm.jpg
 Dateigröße:  217.67 KB
 Heruntergeladen:  312 mal
