Spider Plott - Programm umschreiben



xxxyyyy
Forum-Anfänger

Forum-Anfänger


Beiträge: 26
Anmeldedatum: 08.10.18
Wohnort: ---
Version: ---
     Beitrag Verfasst am: 27.12.2018, 21:05     Titel: Spider Plott - Programm umschreiben
  Antworten mit Zitat
Hallo,

ich habe folgendes Programm gefundet, das einen Spider-Plott erstellt.
https://www.mathworks.com/matlabcen.....e/59561-spider-radar-plot

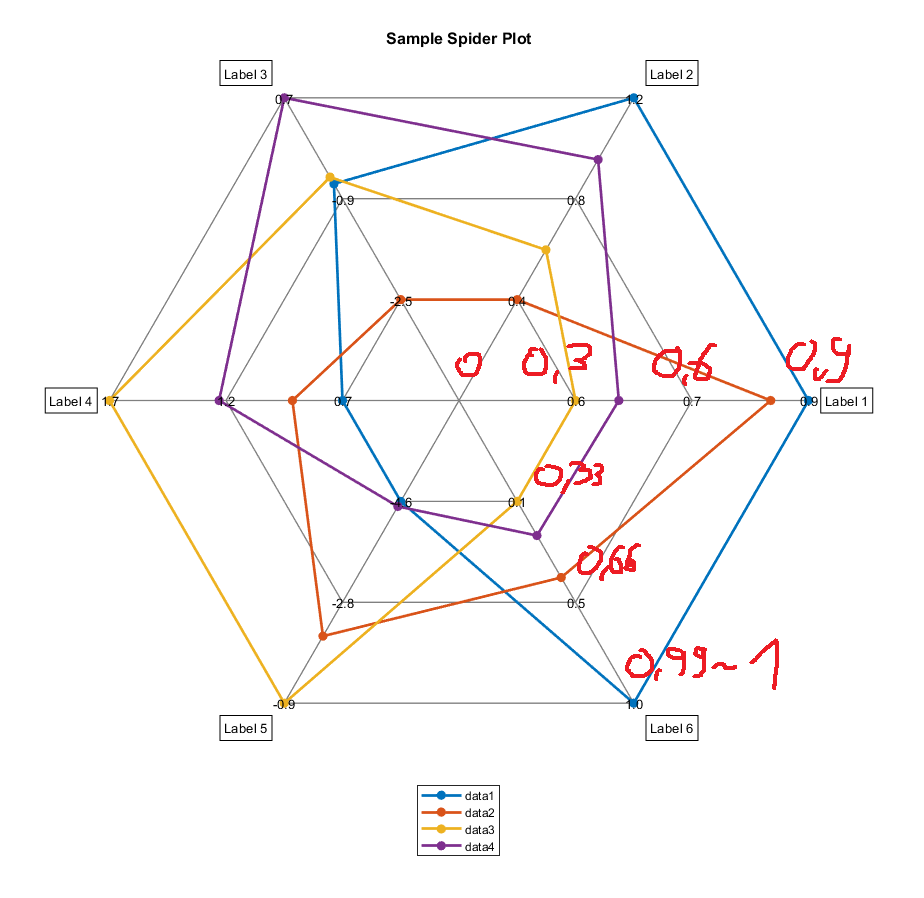

Das klappt auch soweit wunderbar (siehe Bild unten).
(Im Prinzip bräuchte ich sogar garkeine negativen Zahlen zum Eintragen)
Habe bereits rausgefunden wie man die Punkte und die Achsenbeschriftung ändert.

Ein Problem bekomme ich aber nicht gelöst:
Und zwar würde ich gerne die Achsenskala von 0 beginnen lassen.
D.h. die Skala soll von 0 (im Mittelpukt) bis zum Maximalwert der Datenreihe laufen (siehe Rot eingetragen).
(Momentan ist es ja so, dass sie im kleinsten "Ring" den kleinsten Wert einträgt und dann im größten "Ring" den größten Wert. Das führt aber dazu, dass der Abstand zwischen dem Mittelpunkt zum kleinsten "Ring" nicht dem Maßstab entspricht. Bspw. ist mitte links der Abstand immer zwischen 0,7 1,2 und 1,7 der Abstande immer 0,5, aber nicht vom Zentrum 0 bis zu 0,7. Ich hoffe es wird klar, was das Problem ist.)


Da ich mich in Matlab noch nicht so gut auskenne, wäre es super, wenn mir jemand helfen könnte.
Danke im Voraus Smile


EDIT:
Ich denke es muss etwas mit dieser Stelle zu tun haben:
% Max and min value of each group
max_values(ii) = max(group_points);
min_values(ii) = min(group_points);
range = max_values(ii) - min_values(ii);



Code:

function spider_plot(P, P_labels, axes_interval, axes_precision, varargin)
% Create a spider web or radar plot with an axes specified for each column
%
% spider_plot(P, P_labels, axes_interval, axes_precision) creates a spider
% web plot using the points specified in the array P. The column of P
% contains the data points and the rows of P contain the multiple sets of
% data points. Each point must be accompanied by a label specified in the
% cell P_labels. The number of intervals that separate the axes is
% specified by axes_interval. The number of decimal precision points is
% specified by axes_precision.
%
% P - [vector | matrix]
% P_labels - [cell of strings]
% axes_interval - [integer]
% axes_precision - [integer]
%
% spider_plot(P, P_labels, axes_interval, axes_precision, line_spec) works
% the same as the function above. Additional line properties can be added
% in the same format as the default "plot" function in MATLAB.
%
% line_spec - [character vector]
%
% %%%%%%%%%%%%%%%%%%% Example of a Generic Spider Plot %%%%%%%%%%%%%%%%%%%
% % Clear workspace
% close all;
% clearvars;
% clc;
%
% % Point properties
% num_of_points = 6;
% row_of_points = 4;
%
% % Random data
% P = rand(row_of_points, num_of_points);
%
% % Scale points by a factor
% P(:, 2) = P(:, 2) * 2;
% P(:, 3) = P(:, 3) * 3;
% P(:, 4) = P(:, 4) * 4;
% P(:, 5) = P(:, 5) * 5;
%
% % Make random values negative
% P(1:3, 3) = P(1:3, 3) * -1;
% P(:, 5) = P(:, 5) * -1;
%
% % Create generic labels
% P_labels = cell(num_of_points, 1);
%
% for ii = 1:num_of_points
%     P_labels{ii} = sprintf('Label %i', ii);
% end
%
% % Figure properties
% figure('units', 'normalized', 'outerposition', [0 0.05 1 0.95]);
%
% % Axes properties
% axes_interval = 2;
% axes_precision = 1;
%
% % Spider plot
% spider_plot(P, P_labels, axes_interval, axes_precision,...
%     'Marker', 'o',...
%     'LineStyle', '-',...
%     'LineWidth', 2,...
%     'MarkerSize', 5);
%
% % Title properties
% title('Sample Spider Plot',...
%     'Fontweight', 'bold',...
%     'FontSize', 12);
%
% % Legend properties
% legend('show', 'Location', 'southoutside');
% %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%% Point Properties %%%
% Number of points
[row_of_points, num_of_points] = size(P);
%%% Error Check %%%
% Check if axes properties are an integer
if floor(axes_interval) ~= axes_interval || floor(axes_precision) ~= axes_precision
    error('Error: Please enter in an integer for the axes properties.');
end
% Check if axes properties are positive
if axes_interval < 1 || axes_precision < 1
    error('Error: Please enter value greater than one for the axes properties.');
end
% Check if the labels are the same number as the number of points
if length(P_labels) ~= num_of_points
    error('Error: Please make sure the number of labels is the same as the number of points.');
end
% Pre-allocation
max_values = zeros(1, num_of_points);
min_values = zeros(1, num_of_points);
axis_increment = zeros(1, num_of_points);
% Normalized axis increment
normalized_axis_increment = 1/axes_interval;
% Iterate through number of points
for ii = 1:num_of_points
    % Group of points
    group_points = P(:, ii);

    % Max and min value of each group
    max_values(ii) = max(group_points);
    min_values(ii) = min(group_points);
    range = max_values(ii) - min_values(ii);

    % Axis increment
    axis_increment(ii) = range/axes_interval;

    % Normalize points to range from [0, 1]
    P(:, ii) = (P(:, ii)-min(group_points))/range;

    % Shift points by one axis increment
    P(:, ii) = P(:, ii) + normalized_axis_increment;
end
%%% Polar Axes %%%
% Polar increments
polar_increments = 2*pi/num_of_points;
% Normalized  max limit of axes
axes_limit = 1;
% Shift axes limit by one axis increment
axes_limit = axes_limit + normalized_axis_increment;
% Polar points
radius = [0; axes_limit];
theta = 0:polar_increments:2*pi;
% Convert polar to cartesian coordinates
[x_axes, y_axes] = pol2cart(theta, radius);
% Plot polar axes
grey = [1, 1, 1] * 0.5;
h = line(x_axes, y_axes,...
    'LineWidth', 1,...
    'Color', grey);
% Iterate through all the line handles
for ii = 1:length(h)
    % Remove polar axes from legend
    h(ii).Annotation.LegendInformation.IconDisplayStyle = 'off';
end
%%% Polar Isocurves %%%
% Shifted axes interval
shifted_axes_interval = axes_interval+1;
% Incremental radius
radius = (0:axes_limit/shifted_axes_interval:axes_limit)';
% Convert polar to cartesian coordinates
[x_isocurves, y_isocurves] = pol2cart(theta, radius);
% Plot polar isocurves
hold on;
h = plot(x_isocurves', y_isocurves',...
    'LineWidth', 1,...
    'Color', grey);
% Iterate through all the plot handles
for ii = 1:length(h)
    % Remove polar isocurves from legend
    h(ii).Annotation.LegendInformation.IconDisplayStyle = 'off';
end
%%% Figure Properties %%%
colors = [0, 0.4470, 0.7410;...
    0.8500, 0.3250, 0.0980;...
    0.9290, 0.6940, 0.1250;...
    0.4940, 0.1840, 0.5560;...
    0.4660, 0.6740, 0.1880;...
    0.3010, 0.7450, 0.9330;...
    0.6350, 0.0780, 0.1840];
% Repeat colors is necessary
repeat_colors = fix(row_of_points/size(colors, 1))+1;
colors = repmat(colors, repeat_colors, 1);
%%% Data Points %%%
% Iterate through all the rows
for ii = 1:row_of_points
    % Convert polar to cartesian coordinates
    [x_points, y_points] = pol2cart(theta(1:end-1), P(ii, :));

    % Make points circular
    x_circular = [x_points, x_points(1)];
    y_circular = [y_points, y_points(1)];

    % Plot data points
    plot(x_circular, y_circular,...
        'Color', colors(ii, :),...
        'MarkerFaceColor', colors(ii, :),...
        varargin{:});
end
%%% Axis Properties %%%
% Figure background
fig = gcf;
fig.Color = 'white';
% Iterate through all the number of points
for hh = 1:num_of_points
    % Shifted min value
    shifted_min_value = min_values(hh)-axis_increment(hh);

    % Axis label for each row
    row_axis_labels = (shifted_min_value:axis_increment(hh):max_values(hh))';

    % Iterate through all the isocurve radius
    for ii = 2:length(radius)
        % Display axis text for each isocurve
        text(x_isocurves(ii, hh), y_isocurves(ii, hh), sprintf(sprintf('%%.%if', axes_precision), row_axis_labels(ii)),...
            'Units', 'Data',...
            'Color', 'k',...
            'FontSize', 10,...
            'HorizontalAlignment', 'center',...
            'VerticalAlignment', 'middle');
    end
end
% Label points
x_label = x_isocurves(end, :);
y_label = y_isocurves(end, :);
% Shift axis label
shift_pos = 0.07;
% Iterate through each label
for ii = 1:num_of_points
    % Angle of point in radians
    theta_point = theta(ii);

    % Find out which quadrant the point is in
    if theta_point == 0
        quadrant = 0;
    elseif theta_point == pi/2
        quadrant = 1.5;
    elseif theta_point == pi
        quadrant = 2.5;
    elseif theta_point == 3*pi/2
        quadrant = 3.5;
    elseif theta_point == 2*pi
        quadrant = 0;
    elseif theta_point > 0 && theta_point < pi/2
        quadrant = 1;
    elseif theta_point > pi/2 && theta_point < pi
        quadrant = 2;
    elseif theta_point > pi && theta_point < 3*pi/2
        quadrant = 3;
    elseif theta_point > 3*pi/2 && theta_point < 2*pi
        quadrant = 4;
    end

    % Adjust text alignment information depending on quadrant
    switch quadrant
        case 0
            horz_align = 'left';
            vert_align = 'middle';
            x_pos = shift_pos;
            y_pos = 0;
        case 1
            horz_align = 'left';
            vert_align = 'bottom';
            x_pos = shift_pos;
            y_pos = shift_pos;
        case 1.5
            horz_align = 'center';
            vert_align = 'bottom';
            x_pos = 0;
            y_pos = shift_pos;
        case 2
            horz_align = 'right';
            vert_align = 'bottom';
            x_pos = -shift_pos;
            y_pos = shift_pos;
        case 2.5
            horz_align = 'right';
            vert_align = 'middle';
            x_pos = -shift_pos;
            y_pos = 0;
        case 3
            horz_align = 'right';
            vert_align = 'top';
            x_pos = -shift_pos;
            y_pos = -shift_pos;
        case 3.5
            horz_align = 'center';
            vert_align = 'top';
            x_pos = 0;
            y_pos = -shift_pos;
        case 4
            horz_align = 'left';
            vert_align = 'top';
            x_pos = shift_pos;
            y_pos = -shift_pos;
    end

    % Display text label
    text(x_label(ii)+x_pos, y_label(ii)+y_pos, P_labels{ii},...
        'Units', 'Data',...
        'HorizontalAlignment', horz_align,...
        'VerticalAlignment', vert_align,...
        'EdgeColor', 'k',...
        'BackgroundColor', 'w');
end
% Axis limits
axis square;
axis([-axes_limit, axes_limit, -axes_limit, axes_limit]);
axis off;
end



[EDITED, Jan, Du hast vergessen das Lizenz-File mitanzuhängen, was bei der BSD-License obligatorisch ist:]

Zitat:
Copyright (c) 2017, Moses
Copyright (c) 2011, David Said
All rights reserved.

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this
list of conditions and the following disclaimer.

* Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.


 Beschreibung:

Download
 Dateiname:  test.PNG
 Dateigröße:  67.92 KB
 Heruntergeladen:  31 mal
Private Nachricht senden Benutzer-Profile anzeigen


Jan S
Moderator

Moderator


Beiträge: 10.857
Anmeldedatum: 08.07.10
Wohnort: Heidelberg
Version: 2009a, 2016b
     Beitrag Verfasst am: 28.12.2018, 17:39     Titel: Re: Spider Plott - Programm umschreiben
  Antworten mit Zitat
Hallo xxxyyyy,

Ich würde mal:
Code:
min_values(ii) = min(group_points);

durch
Code:
min_values(ii) = 0;

ersetzen.
Gruß, Jan
Private Nachricht senden Benutzer-Profile anzeigen

Neues Thema eröffnen Neue Antwort erstellen



Einstellungen und Berechtigungen
Beiträge der letzten Zeit anzeigen:

Du kannst Beiträge in dieses Forum schreiben.
Du kannst auf Beiträge in diesem Forum antworten.
Du kannst deine Beiträge in diesem Forum nicht bearbeiten.
Du kannst deine Beiträge in diesem Forum nicht löschen.
Du kannst an Umfragen in diesem Forum nicht mitmachen.
Du kannst Dateien in diesem Forum posten
Du kannst Dateien in diesem Forum herunterladen
.


goMatlab ist ein Teil des goForen-Labels
goForen.de goMATLAB.de goLaTeX.de


 Impressum  | Nutzungsbedingungen  | Datenschutz  | Werbung/Mediadaten | Studentenversion | FAQ | goMatlab RSS Button RSS


Copyright © 2007 - 2019 goMatlab.de | Dies ist keine offizielle Website der Firma The Mathworks
Partner: LabVIEWforum.de

MATLAB, Simulink, Stateflow, Handle Graphics, Real-Time Workshop, SimBiology, SimHydraulics, SimEvents, and xPC TargetBox are registered trademarks and The MathWorks, the L-shaped membrane logo, and Embedded MATLAB are trademarks of The MathWorks, Inc.
